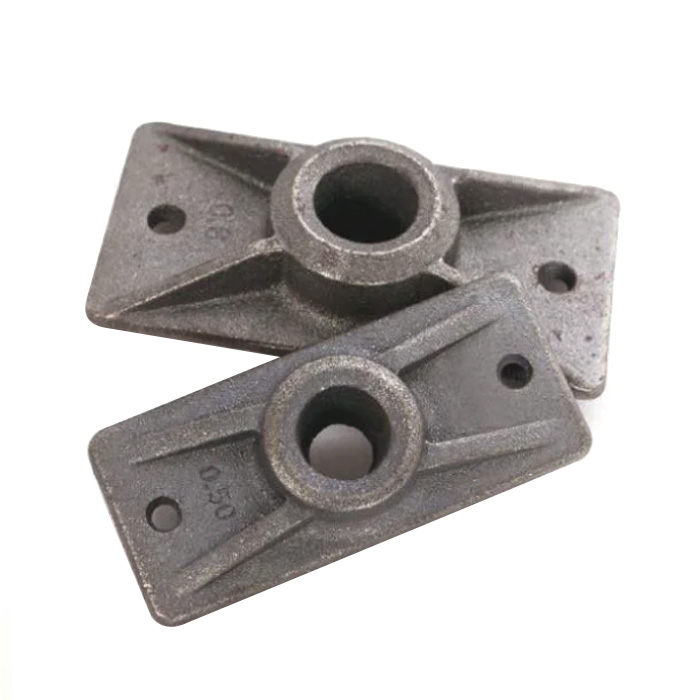

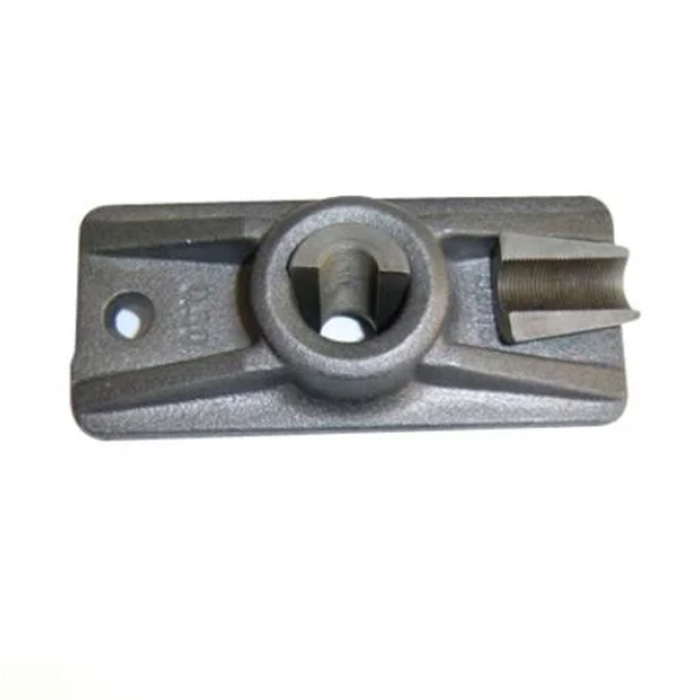

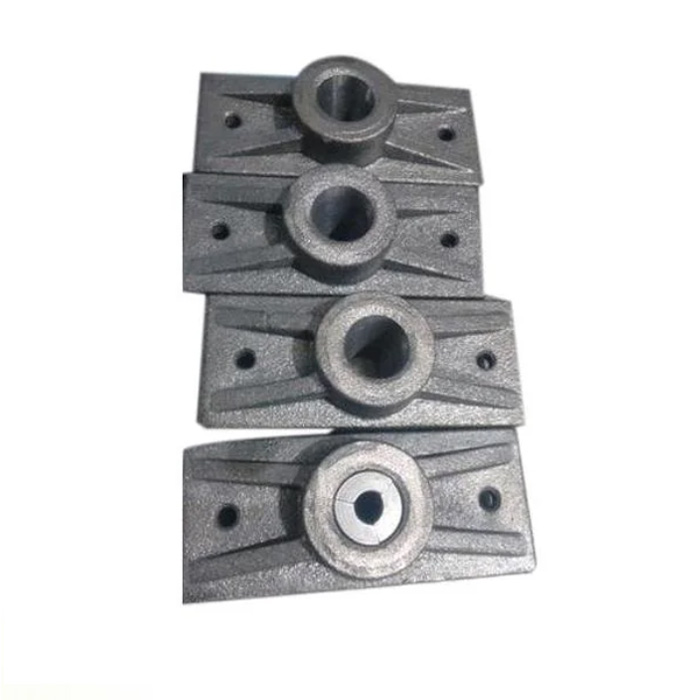

Prestressed Unbonded Anchorage

Our prestressed unbonded anchorage systems feature 0.5" and 0.6" diameter strands coated with a layer of specially formulated grease. The outer layer is seamless plastic extruded in one continuous operation to provide protection against corrosion. Each tendon is precisely coiled, cut, labeled, color-coded and delivered to the construction site. A wide variety of anchorage systems (see Product Information tab below) are available to meet design specifications.

Send Inquiry

Product Description

It is adaptable for stand with diameters of 12.5mm, 12.7mm 12.9mm, 15.2mm, 15.24mm, 15.7mm with

various strength from 1570Mpa to 2000Mpa.

Good in terms of self-anchoring and easy operation;

High anchoring efficiency factor, stable and reliable;

Be capable of repetitive stretching and strong in terms of anti-interference capability.

1. Name: prestressed unbonded anchorage

2. Capacity: HRC 15-35

3. Holes for anchorage: One hole

4. Wedges: 2pcs or 3pcs

5. Shape: round or flat

6. Specification: Used for the PC steel strand 12.7mm and 15.24mm.

7. Package: In box and outside wooden case

8. Other parts for the anchor: anchor ring/plate, wedge, base plate, spiral bar, bellows/corrugated pipe.

Production Process

We have updated our production line for making prestressed unbonded anchorage.

Our production process include resin sand molding line, shell molding line, green sand casting and lost wax investment casting production process.

Machining Workshop

We have full set line of machining facilities, various CNC equipment and Machining Center can meet customers’ requirements. After machining, the casting parts will be completed. Then, they will be inspected and packed for delivery and shipment.

Quality Control

Checking the raw material after they reach our factory------- Incoming quality control

Checking the details before the production line operated

Have full inspection and routing inspection during mass production---In process quality control

Checking the goods after they are finished---- Final quality control

Checking the goods after they are finished-----Outgoing quality control

Packing and Delivery

Packaging of prestressed unbonded anchorage can be customized based on customer requirements to meet the different needs, such as plastic bag, carton box, wooden case, crate, etc.
