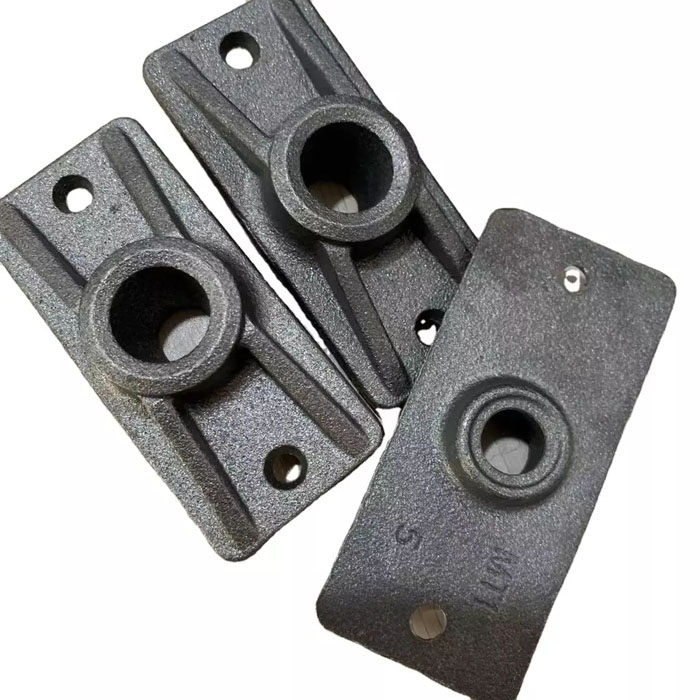

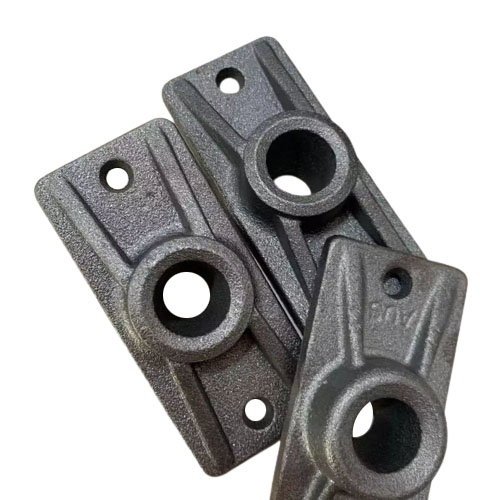

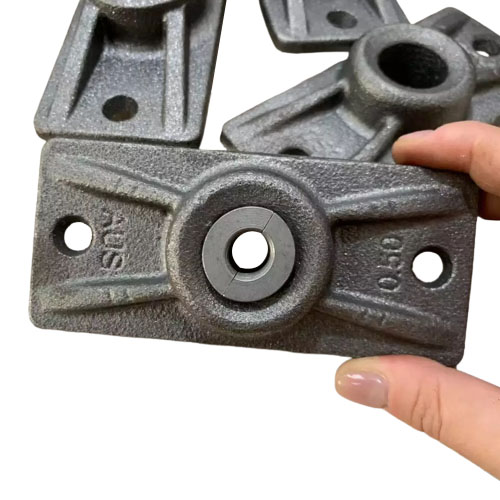

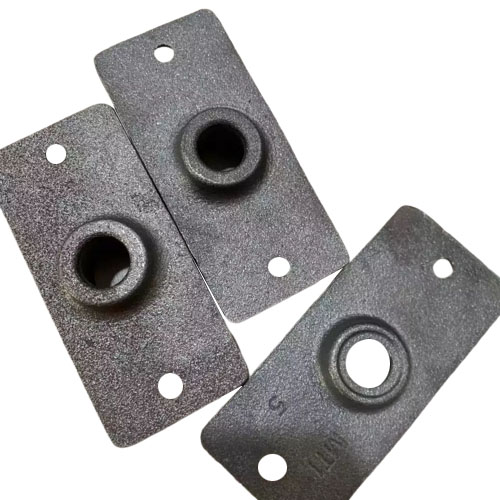

Prestressed Unbonded Monostrand Anchor

Ningbo Supreme Machinery Co., Ltd., established in 1990, is one of the Prestressed Unbonded Monostrand Anchor manufacturers and suppliers in China. We offer a complete range of anchor castings for Prestressed Unbonded Monostrand Anchor applications. Bare anchor castings are available for 0.5” and 0.6” strand. Special order anchor castings can be manufactured to your specifications.

Send Inquiry

Product Description

Ningbo Supreme Machinery Co., Ltd., established in 1990, is one of the Prestressed Unbonded Monostrand Anchor manufacturers and suppliers in China. The material for Prestressed Unbonded Monostrand Anchor can be spheroidal graphite cast iron, which puts traditional anchor ring and plates into one integration anchor. It simplifies the complicated manufacturing procedure and structure, which has the advantage of convenient construction, perfect seal ability and easy to guarantee the perpendicularity between the anchorage and steel strands.

Application

Prestressed Anchor system is a completed, independent building measure researched, it has been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials, such as bridge construction, railway and highway construction, buildings and channel construction, etc.

Product Details

1. Type: Unbonded Post Tension

2. Capacity: HRC 15-35

3. Holes for anchorage: One hole

4. Wedges: 2pcs or 3pcs

5. Shape: Flat

6. Specification: Used for the PC steel strand 12.7mm and 15.24mm.

7. Package: In box and outside wooden case

8. Other parts for the anchor: anchor ring/plate, wedge, base plate, spiral bar, bellows/corrugated pipe.

Specification

Technical Data of Mono Anchorage
Strand	A	B	C	D	E	Weight
mm	mm	mm	mm	mm	mm	kg
12.7	127	57.1	33	50.8	63.5	0.48
15.2	148	76	41	50.8	82.6	0.93

Production Process

We have updated our production line for making Prestressed Unbonded Monostrand Anchor

Our production process include resin sand molding line, shell molding line, green sand casting and lost wax investment casting production process.

Machining Workshop

We have full set line of machining facilities, various CNC equipment and Machining Center can meet customers’ requirements. After machining, the casting parts will be completed. Then, they will be inspected and packed for delivery and shipment.

Quality Control

Checking the raw material after they reach our factory------- Incoming quality control

Checking the details before the production line operated

Have full inspection and routing inspection during mass production---In process quality control

Checking the goods after they are finished---- Final quality control

Checking the goods after they are finished-----Outgoing quality control

Packing and Delivery

Packaging of Prestressed Unbonded Monostrand Anchor can be customized based on customer requirements to meet the different needs, such as plastic bag, carton box, wooden case, crate, etc.
