Prestressed Flat Arc Anchorage

Prestressed flat arc anchorage is a type of anchorage system used in the construction industry to provide additional tensile strength and stability to prestressed concrete structures. They are specially designed to fit the flat shapes of concrete members and are typically used for the construction of curved bridges, tunnels, and other structures.

Send Inquiry

Product Description

We supply a wide variety of flat anchorage components to suit 12.7, 15.2 and 15.7 mm strand diameters, and can manufacture to meet your special needs by request.
Advantages of Prestressed Flat Arc Anchorage
1.Good in terms of self-anchoring and easy operation;
2.High anchoring efficiency factor, stable and reliable;
3.Be capable of repetitive stretching and strong in terms of anti-interference capability.

1. For Strands Number: 2 strands, 3 strands, 4 strands, 5 strands.

2. Materials: Anchor Head Materials: Iron Casting, Wedges Materials: 20CrMnTi.

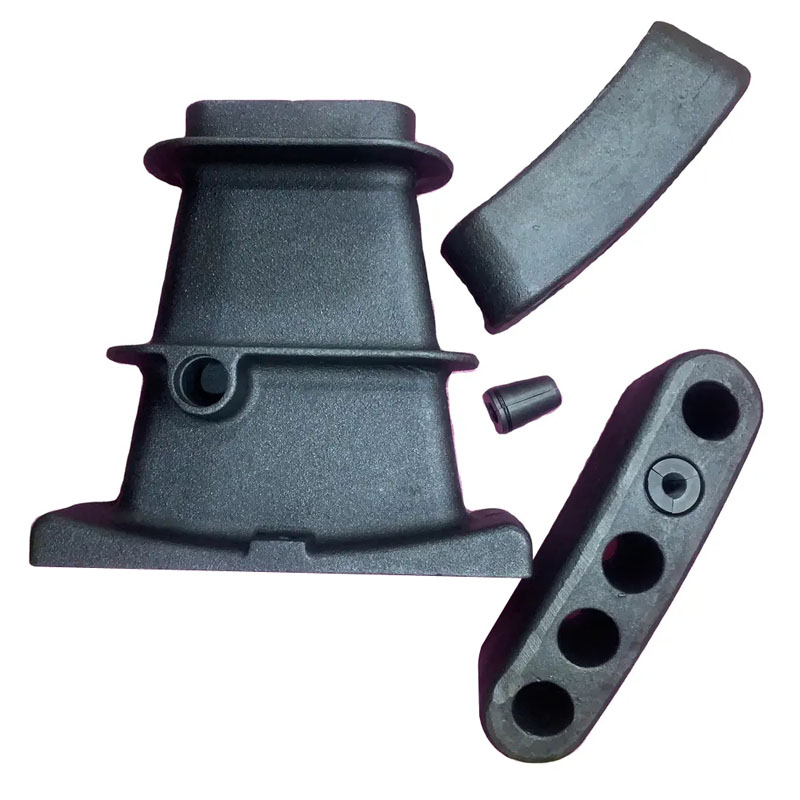

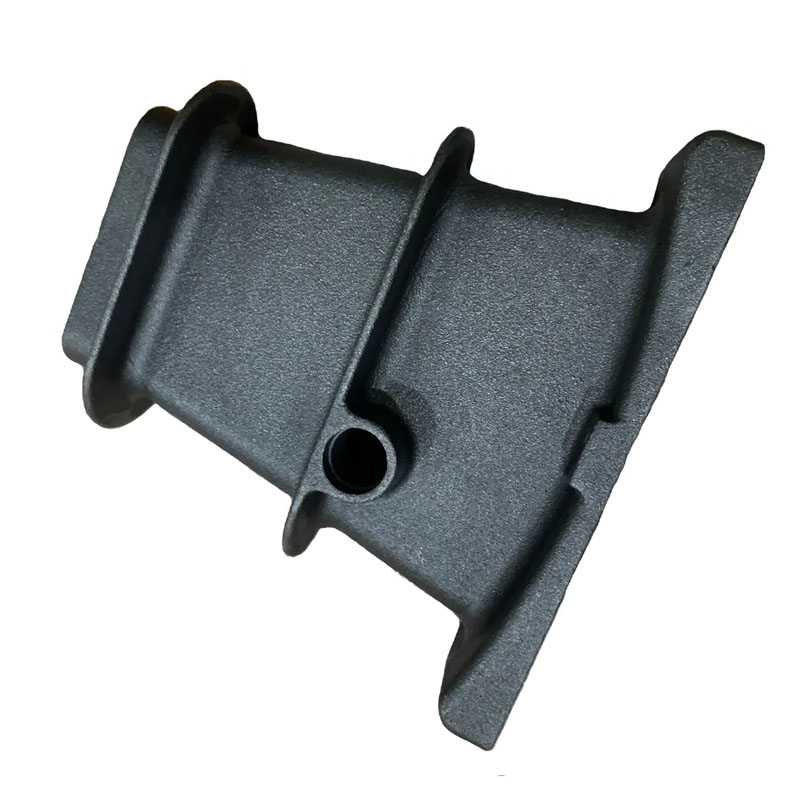

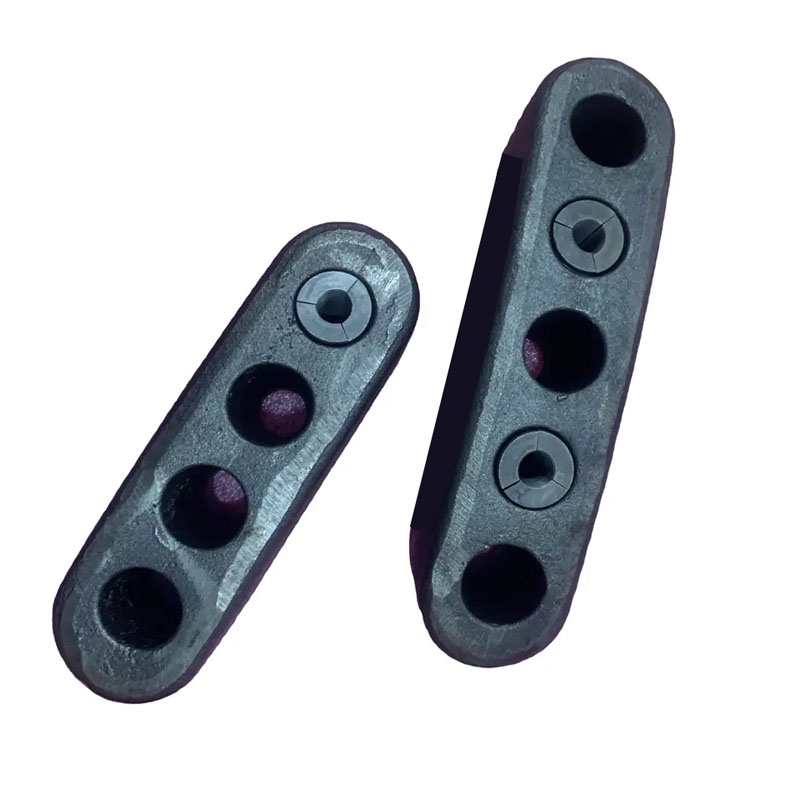

3. Full Complete Parts: Flat Anchor Casting Head, Wedges, Anchor Bearing Plate, Spiral Spring Ring.

4. Anchor Head Hardness: HRC25-36. Wedges Hardness: HRC58-65.

Production Process

We have updated our production line for making Prestressed Flat Arc Anchorage
Our production process include resin sand molding line, shell molding line, green sand casting and lost wax investment casting production process.

Machining Workshop

We have full set line of machining facilities, various CNC equipment and Machining Center can meet customers’ requirements. After machining, the casting parts will be completed. Then, they will be inspected and packed for delivery and shipment.

Quality Control

Checking the raw material after they reach our factory------- Incoming quality control
Checking the details before the production line operated
Have full inspection and routing inspection during mass production---In process quality control
Checking the goods after they are finished---- Final quality control
Checking the goods after they are finished-----Outgoing quality control

Packing and Delivery

Packaging of Prestressed Flat Arc Anchorage can be customized based on customer requirements to meet the different needs, such as plastic bag, carton box, wooden case, crate, etc.
