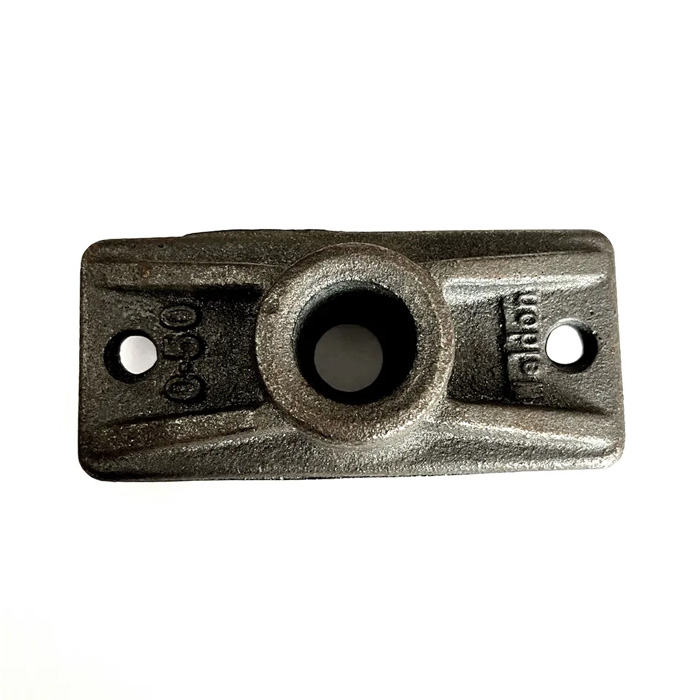

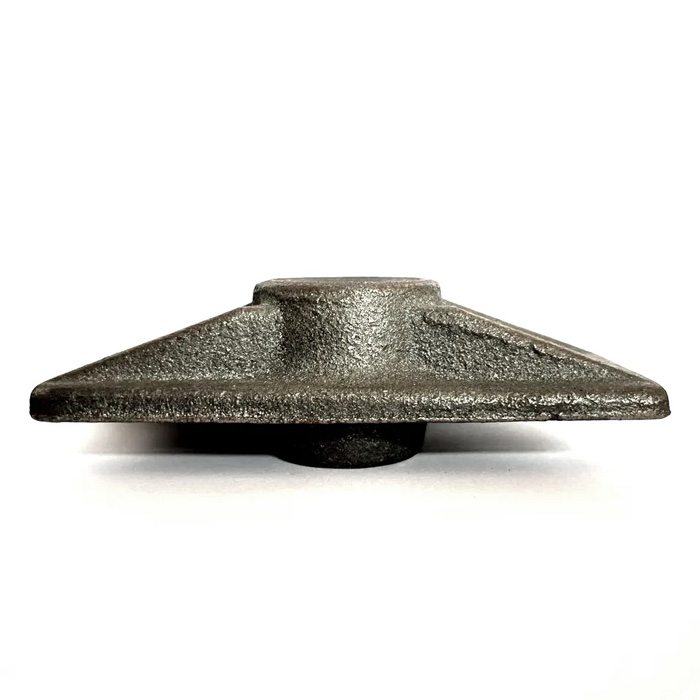

Post Tension Unbonded Single-hole Anchor

As the professional manufacture, we would like to provide you Post Tension Unbonded Single-hole Anchor. Monostrand (Single Strand) - Tendon with one strand.
Multistrand-Tendon with more than one strand.
Outlet-Tubing with connection to duct used to allow the escape of air, grout, and bleed water from the duct.
Pocket former-A device that forms a temporary recess in the concrete to allow access for stressing.
Sheathing-For unbonded single strand tendons, an enclosure in which prestressing steel is encased to prevent bond with surrounding concrete that provides corrosion protection and contains PT coating.
Strand-High strength steel wires wound around a center wire, typically seven-wire strand, conforming to ASTM A416/A416M.

Send Inquiry

Product Description

Product Name: Post Tension Unbonded Single-hole Anchor

Size: 0.5", 0.6"

Color: Normal Steel Color( Chemical Dioxide Surface Treatment) or Galvanized Golden Color.

Anchor Shape: Rectangle Shape

Material for Anchor Plate: Spheroidal Graphite Cast Iron

Material for Wedges: 20CrMnTi High Glass Carbon Steel

Features: Good Deburring and Chamfering

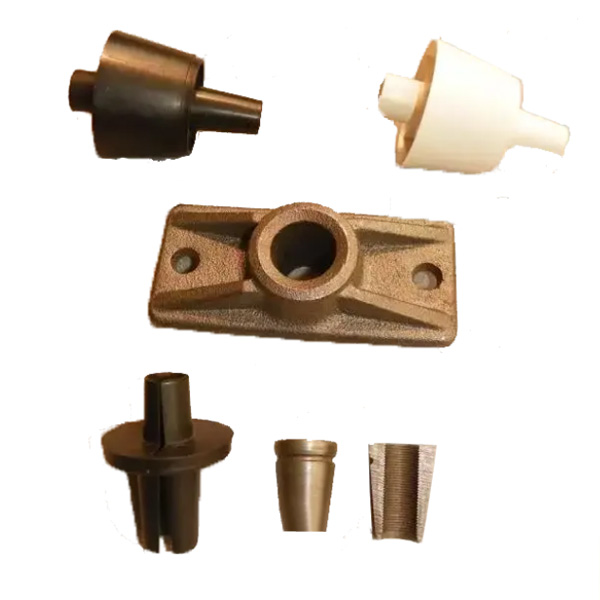

Assembly Accessories: Flat Anchorage Plate, Wedges, Pocket Former

Standard: ASTMA416, BS5896, GB/T 14370-2007

Strand Tensile Strength: 1860Mpa to 2000Mpa

Production Process

We have updated our production line for making Post Tension Unbonded Single-hole Anchor. Our production process include resin sand molding line, shell molding line, green sand casting and lost wax investment casting production process.

Machining Workshop

We have full set line of machining facilities, various CNC equipment and Machining Center can meet customers’ requirements. After machining, the casting parts will be completed. Then, they will be inspected and packed for delivery and shipment.

Quality Control

Checking the raw material after they reach our factory------- Incoming quality control

Checking the details before the production line operated

Have full inspection and routing inspection during mass production---In process quality control

Checking the goods after they are finished---- Final quality control

Checking the goods after they are finished-----Outgoing quality control

Packing and Delivery

Packaging of Post Tension Unbonded Single-hole Anchor can be customized based on customer requirements to meet the different needs, such as plastic bag, carton box, wooden case, crate, etc.
