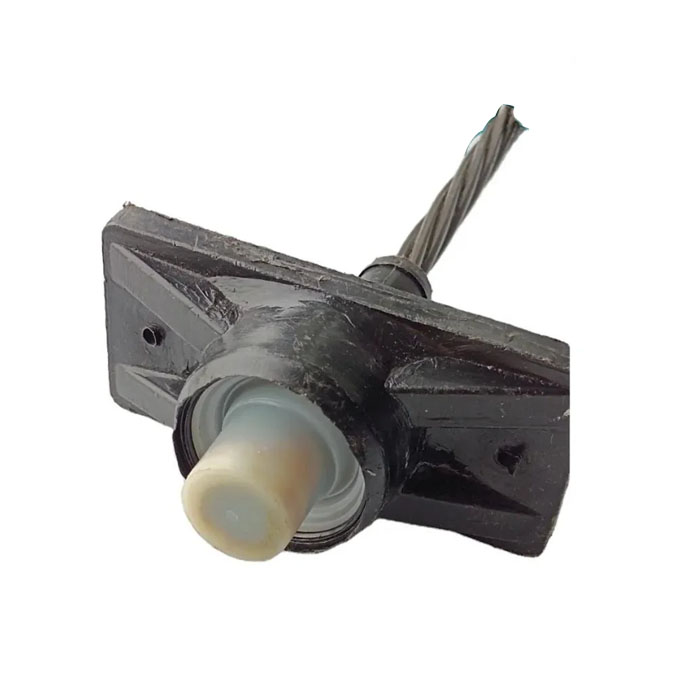

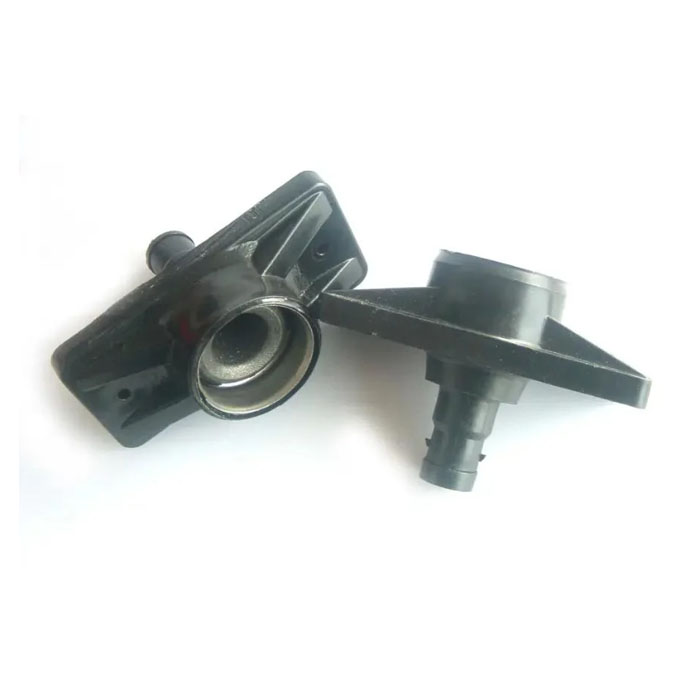

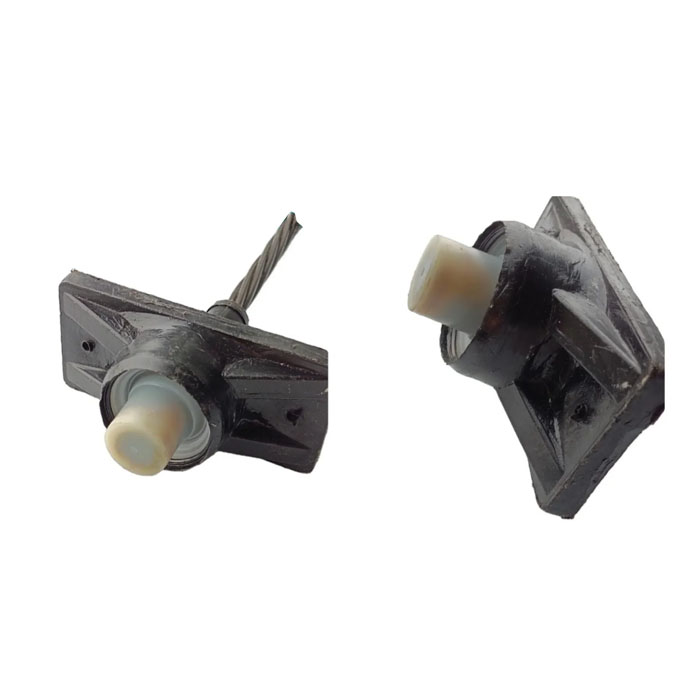

Encapsulated Monostrand Anchor

We are professional manufacturer of various encapsulated monostrand anchor systems, and specialized in supplying all kinds of steel products of PC strand, PC wire and post tension equipments. We developed overseas market over 15 years and gained lots of experiences.

Send Inquiry

Product Description

Encapsulated unbonded monostrand anchor systems are used in areas that are subject to corrosive conditions. Strands are protected at the anchorages using greased plastic sleeves and grease-filled end caps. Additionally, anchorage components are fully encapsulated in a high density polyethylene plastic covering and an optional encapsulated intermediate coupler anchorage system can be used to protect the strand at construction joints.


Usage

Modern construction,especially used in pre-tension or post-tension for concrete constructions and building materials.


Assembles

Anchor head, bearing plate, anchor wedge, spiral reinforcement , plastic or metal corrugated ducts, PC strands(PC wire bundle).


Product Details

Material of anchor

ASTM A536 80-55-06 Ductile Iron

Material of Wedge

20CrMnTi ; 20CrMn5

Type of wedge

2pcs or 3pcs

Holes

One Hole

Hardness of work Wedge(HRC)

50~65

Surface treatment of anchor plate

Encapsulated

Specification

12.7, 15.24

Capacity

1860MPA

Sample

Available

Production Process

We have updated our production line for making encapsulated monostrand anchor.

Our production process include resin sand molding line, shell molding line, green sand casting and lost wax investment casting production process.

Machining Workshop

We have full set line of machining facilities, various CNC equipment and Machining Center can meet customers’ requirements. After machining, the casting parts will be completed. Then, they will be inspected and packed for delivery and shipment.

Quality Control

Checking the raw material after they reach our factory------- Incoming quality control

Checking the details before the production line operated

Have full inspection and routing inspection during mass production---In process quality control

Checking the goods after they are finished---- Final quality control

Checking the goods after they are finished-----Outgoing quality control

Packing and Delivery

Packaging of encapsulated monostrand anchor can be customized based on customer requirements to meet the different needs, such as plastic bag, carton box, wooden case, crate, etc.
