Cast Iron Rail Shoulder

Ningbo Supreme Machinery Co., Ltd is a professional gray iron and ductile Iron casting manufacturer and supplier in China. We produce Grey Iron, Ductile Iron and Steel Castings for Railway Train accessories such as Cast Iron Rail Shoulder, brake block, brake shoe, Rail Clamp plate, Rail Anchor, Steel Sleeper,etc.

Send Inquiry

Product Description

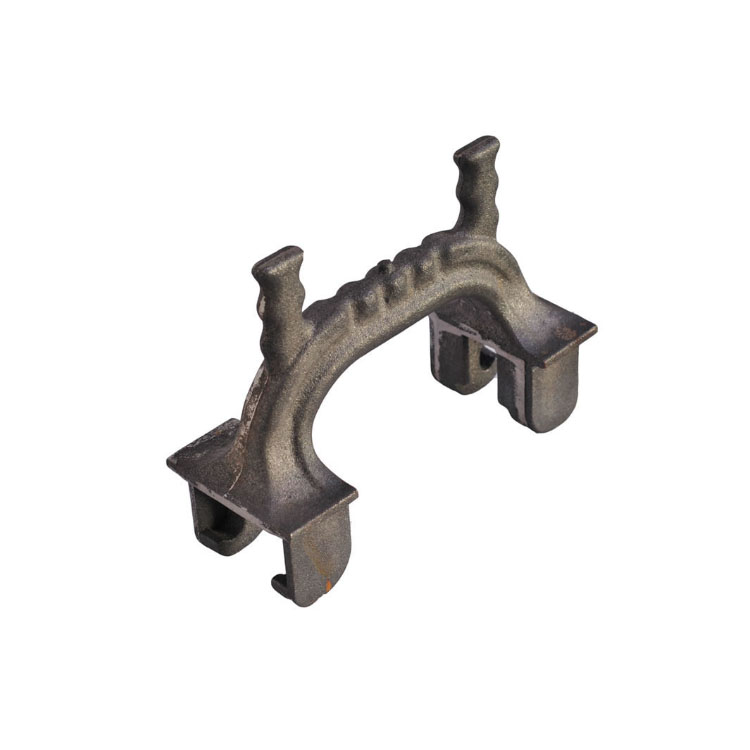

Ningbo Supreme Machinery Co., Ltd is a professional gray iron and ductile Iron casting manufacturer and supplier in China. The cast iron rail shoulder is a semi-embedded part into the sleeper to fasten the clip to the base plate, and protect the clip from being stolen. We could supply different types of shoulders satisfying clients' needs.

1. rail shoulder is manufactured in one-piece construction for spring steel or equal, heat-treated and designed to eliminate creepage of truck. The rail shoulder provide a large bearing surface against both rail base and tie, avoiding undo cuttings and wear, thus prolonging the life of wooden lines. The rail anchors are used in 50Kg, 85Kg, 90 / 91LB, 115RE / 136RE, UIC54 and UIC60 rail.

2. The Russian rail shoulder is a kind of casting product used in the construction of railway. It is made of QT400-15 material. Its mechanical properties in the as-cast state are fully compliant to the TOCT 7293-85

With our own R&D department, we have succeeded and continue to produce new rail anchor according to our customers' request. If you are interested in railway components, please contact us and we always offer the professional help to meet your needs.

Material:QT500-7, QT450-10, QT400-15

Process:Raw material Inspection, Heating treatment, iron casting, Forming, Finished product

Surface Treatment: Plain (oiled), Oxide black Color

Package:woven bags with free-fumigation wooden pallet, or according to customers' requirement

Application:Used in 50Kg, 85Kg, 90 / 91LB, 115RE / 136RE, UIC54 & UIC60 rail

Material grade and mechanical properties

Product	Rail shoulder
Application	UIC54	UIC60	115RE, etc.
Material
Name	QT500-7	QT450-10	QT400-15
Standard	GB 1348-88	GB 1348-88	GB 1348-89
Chemical composition(%)	C:3.60-3.80	C:3.40-3.90	C:3.50-3.60
	Mn:≤0.6	Mn:0.2-0.5	Mn:≤0.5
	Si:2.50-2.90	Si:2.70-3.00	Si:3.0-3.2
	P:≤0.08	P:≤0.07	P:≤0.07
	S:≤0.025	S:≤0.03	S:≤0.02
Tensile Strength	≥500 Mpa	≥450 Mpa	≥400 Mpa
Yield Strength	≥320 Mpa	≥310 Mpa	≥250 Mpa
Elongation(%)	≥7	≥10	≥15
Hardness	170~230HB	160~210HB	130~180HB
Surface	plain (oiled)

Production Process

We have updated our production line for making cast iron rail shoulder. Our production process include resin sand molding line, shell molding line, green sand casting and lost wax investment casting production process.

Machining Workshop

We have full set line of machining facilities, various CNC equipment and Machining Center can meet customers’ requirements. After machining, the casting parts will be completed. Then, they will be inspected and packed for delivery and shipment.

Quality Control

Checking the raw material after they reach our factory------- Incoming quality control

Checking the details before the production line operated

Have full inspection and routing inspection during mass production---In process quality control

Checking the goods after they are finished---- Final quality control

Checking the goods after they are finished-----Outgoing quality control

Packing and Delivery

Packaging of cast iron rail shoulder can be customized based on customer requirements to meet the different needs, such as plastic bag, carton box, wooden case, crate, etc.
