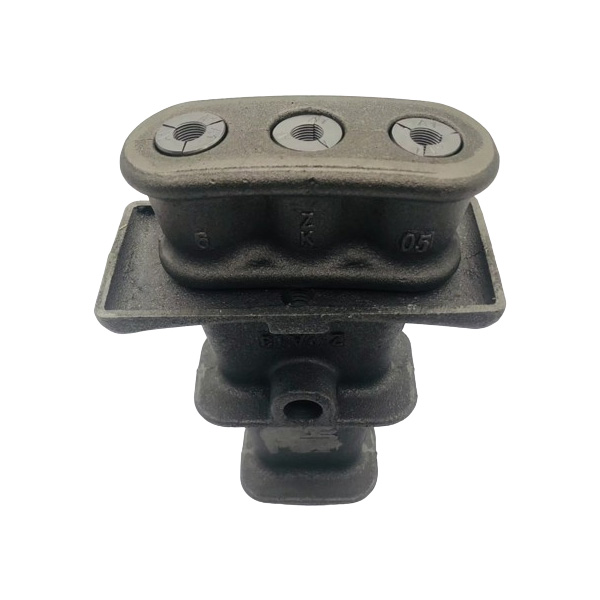

Bonded Post-Tensioning System Anchor

You can rest assured to buy Bonded Post-Tensioning System Anchor from our factory. Bonded Post-Tensioning comprises tendons from one to multiple strands (multistrand) or bars. For bonded systems, the prestressing steel is encased in a corrugated metal or plastic duct. After the tendon is stressed, cementitious grout is injected into the duct to bond it to the surrounding concrete. Besides, the grout creates an alkaline environment which provides corrosion protection for the prestressing steel. Bonded multi-strand systems, while used extensively in new construction of bridges and transportation structures, can be and have been successfully applied to commercial building structures. When these multi-strand systems are used for large structural elements such as beams and transfer girders, design advantages include increased span lengths and load carrying capacity and reduced deflection.

Send Inquiry

Product Description

Product Details

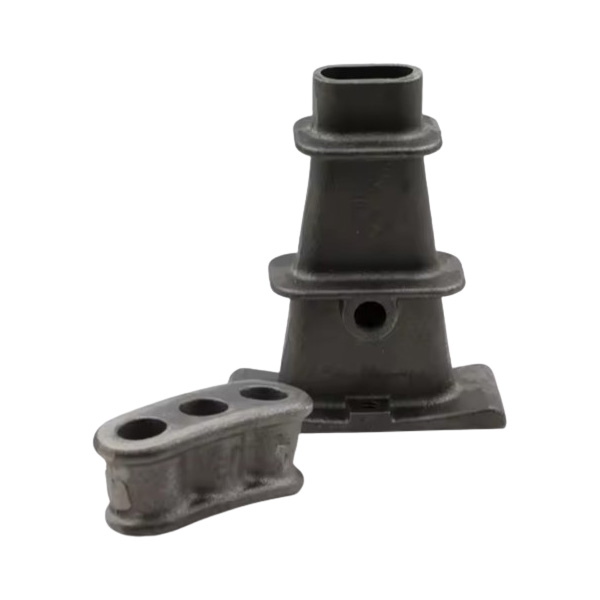

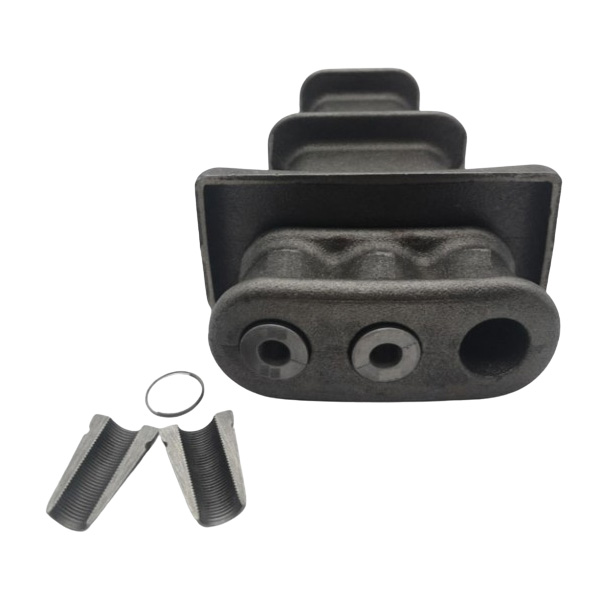

Components for one full set	S3 S5 Casting anchor, anchor block, anchor head, anchor wedges for 12.7mm steel strand, 15.24mm steel strand
Flat anchorage	3 holes, 5 holes
Material of anchor head	casting iron
Material of wedge	20CrMnTi
Surface treatment	anti-rust treatment
Package	in cartons or wooden boxes
Application field	post tension projects such as bridges, malls and roads

Production Process

We have updated our production line for making Bonded Post-Tensioning System Anchor.
Our production process include resin sand molding line, shell molding line, green sand casting and lost wax investment casting production process.

Machining Workshop

We have full set line of machining facilities, various CNC equipment and Machining Center can meet customers’ requirements. After machining, the casting parts will be completed. Then, they will be inspected and packed for delivery and shipment.

Quality Control

Checking the raw material after they reach our factory------- Incoming quality control
Checking the details before the production line operated
Have full inspection and routing inspection during mass production---In process quality control
Checking the goods after they are finished---- Final quality control
Checking the goods after they are finished-----Outgoing quality control

Packing and Delivery

Packaging of Bonded Post-Tensioning System Anchor can be customized based on customer requirements to meet the different needs, such as plastic bag, carton box, wooden case, crate, etc.
