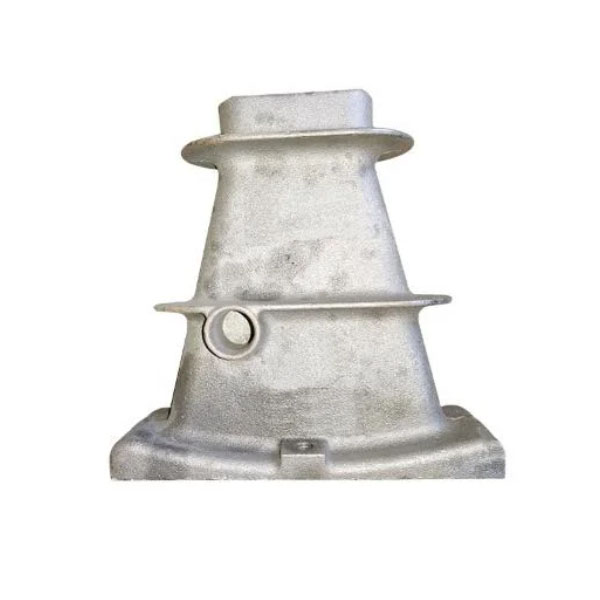

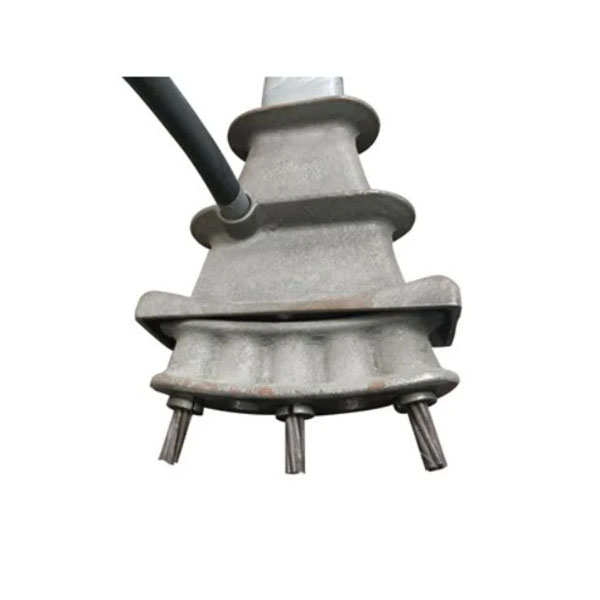

12.7mm S3 and S5 Flat Slab Anchor

The 12.7mm S3 and S5 flat slab anchor is a type of post-tensioning anchorage system used in the construction of flat slab structures. It is designed to provide a secure grip on the post-tensioning cables and to transfer the tension forces to the concrete slab.

Send Inquiry

Product Description

The 12.7mm refers to the diameter of the post-tensioning cable used in the system. The cables are typically made from high-strength steel and are pre-stressed before being anchored to the flat slab anchor.

Application

The 12.7mm S3 and S5 flat slab anchor system is commonly used in high-rise buildings, bridges, and other large-scale constructions. It provides exceptional strength and durability, as well as easy installation and maintenance. The system allows for greater design flexibility, enabling architects and engineers to create buildings with large open spaces and longer spans while minimizing the amount of concrete needed.

Product Details

Components for one full set	S3 S5 Casting anchor, anchor block, anchor head, anchor wedges for 12.7mm steel strand, 15.24mm steel strand
Flat anchorage	3 holes, 5 holes
Material of anchor head	casting iron
Material of wedge	20CrMnTi
Surface treatment	anti-rust treatment
Package	in cartons or wooden boxes

Production Process

We have updated our production line for making 12.7mm S3 and S5 Flat Slab Anchor

Our production process include resin sand molding line, shell molding line, green sand casting and lost wax investment casting production process.

Machining Workshop

We have full set line of machining facilities, various CNC equipment and Machining Center can meet customers’ requirements. After machining, the casting parts will be completed. Then, they will be inspected and packed for delivery and shipment.

Quality Control

Checking the raw material after they reach our factory------- Incoming quality control

Checking the details before the production line operated

Have full inspection and routing inspection during mass production---In process quality control

Checking the goods after they are finished---- Final quality control

Checking the goods after they are finished-----Outgoing quality control

Packing and Delivery

Packaging of 12.7mm S3 and S5 Flat Slab Anchor can be customized based on customer requirements to meet the different needs, such as plastic bag, carton box, wooden case, crate, etc.
